SPECIFICATION TABLE
Specification Table
| Model | Power | Airflow | Pressure (air knife) | Control | Outlet |
|---|---|---|---|---|---|
| H1.25P | 1 kW | 500 m³/h | 9 kPa | Electronic | Φ76 connector |
| H2P | 1.5 kW | 600 m³/h | 12 kPa | External VFD | Φ76 connector |
| H3P | 2.2 kW | 800 m³/h | 15 kPa | External VFD | Φ76 connector |
| H5.5P | 4 kW | 1400 m³/h | 22 kPa | External VFD | Φ100 outlet* |
| H7.5P | 5.5 kW | 1600 m³/h | 24 kPa | External VFD | Φ100 outlet* |
| H10P | 7.5 kW | 1800 m³/h | 28 kPa | External VFD | Φ100 outlet* |
| H15P | 11 kW | 2400 m³/h | 30 kPa | External VFD | Φ100 outlet* |
| H20P | 15 kW | 2600 m³/h | 35 kPa | External VFD | Φ100 outlet* |
* Φ100 outlet can be switched to Φ63 / Φ75 two-way or three-way manifold. Acoustic enclosure and intake filter are standard on all models.
MOTOR & UNIT SPECIFICATIONS
Motor & Unit Specifications
94%
Motor Efficiency
Measured 94% efficiency, high-speed permanent-magnet synchronous motor
15k-24k
Speed rpm
15,000-24,000 rpm, stepless VFD control
Ceramic
Ceramic Ball Bearings
Standard from 1 kW to 15 kW, no downgrade at low power
380V
Rated Voltage
380V AC; other regional voltages available on request
IP54
Protection Class
Motor protection IP54, air cooled
CL.H
Insulation Class
Insulation class CL.H (180°C), winding wire rated 200°C
S1
Duty Cycle
S1 continuous duty, alloy steel motor shaft
PT100
Thermal Protection
PT100 sensor in winding, wired to the VFD for protection

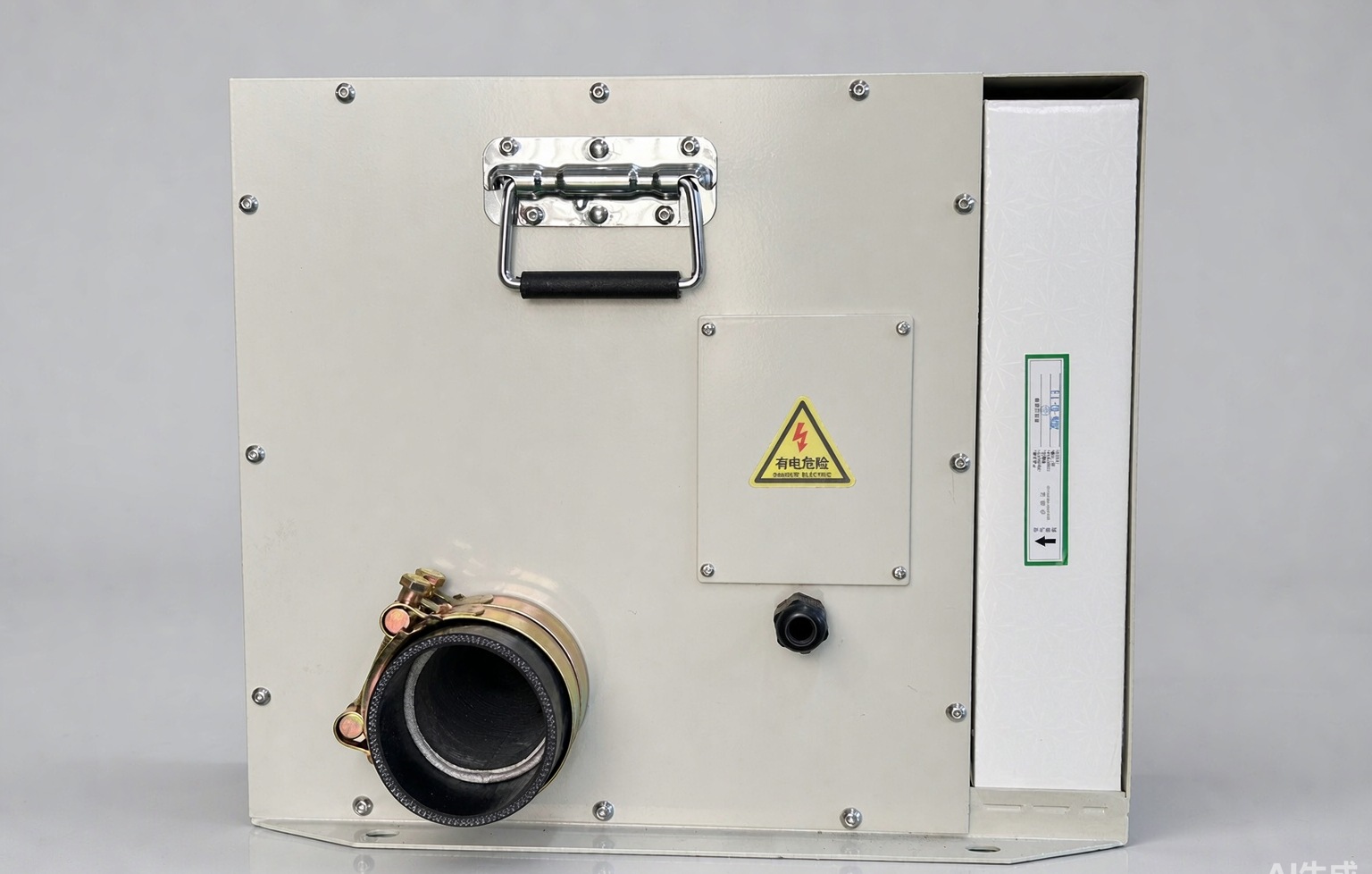

DIMENSIONS & WEIGHT
Dimensions & Weight
| Power Range | Dimensions (L×W×H) | Weight |
|---|---|---|
| 4 - 5.5 kW | 600 × 560 × 562 mm | 60-64 kg |
| 7.5 - 11 kW | 800 × 625 × 550 mm | 75-80 kg |
Compact enough to be built into an equipment bay; blower head and VFD can be mounted separately to suit different cabinet layouts.
SELECTION & INSTALLATION NOTES
Selection & Installation Notes
- Select by required airflow and air-knife pressure, allowing a 10-15% margin for duct losses.
- Keep at least 0.3 m clearance in front of the air intake; the cabinet base and surroundings must be free of dust and sand.
- Ambient temperature must stay below 45°C. If the line environment exceeds 45°C, route the intake duct outside the line.
- Mate the outlet duct naturally without forcing alignment. Support external ducting independently so its weight is not carried by the outlet flange.
- Replace the intake filter every 1-3 months (shorten the interval in harsh conditions). A clogged filter causes surge, reduces savings and damages motor bearings.
- VFD parameters are commissioned before shipment. Wiring must be done by a qualified electrician with effective grounding.
